Esteem Acoustic Office Pod
Dispatched within 10 working days
- Designed and manufactured in the UK by Go Displays.
- Each side is upholstered using acoustic foam and your choice of 12 fabric colours
- Features a strong aluminium frame finished with silver, white or black powder coated frame as standard
- All screens included in the pod at 2.2m high.
- Glazed screens are available in either clear or frosted acrylic.
- Includes an internal 18mm solid core and 12mm fire retardant foam on both sides.
- Esteem Acoustic Office Pods are tested to NIC 21.
- Screen core is pressed together under immense pressure to make it extremely robust.
- Furniture not included

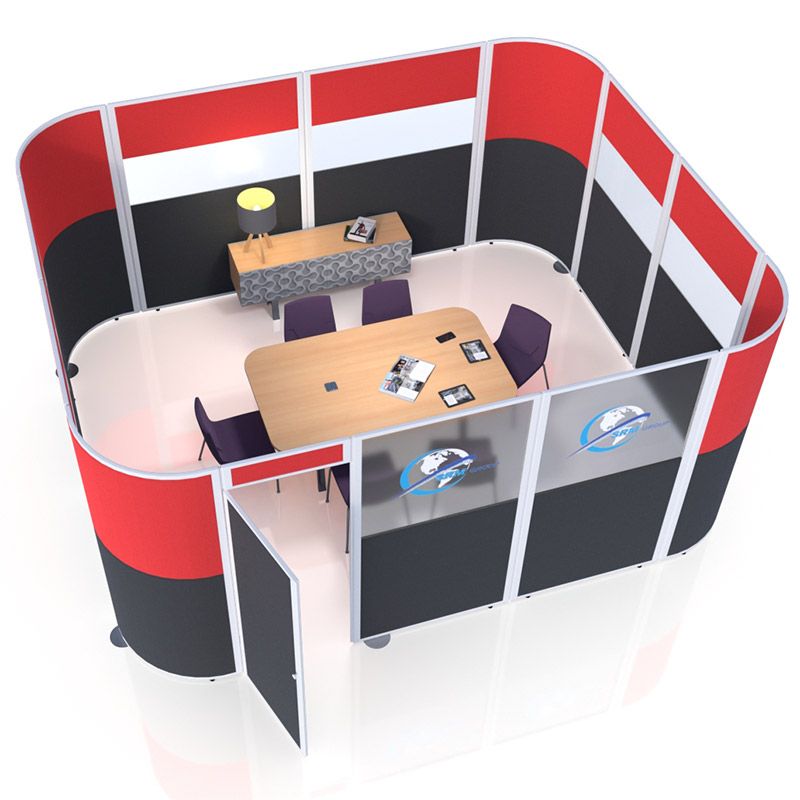

The Esteem Acoustic Office Pod provides a fantastic way of making the most of open plan spaces. By incorporating acoustic absorbent panels, the Esteem Acoustic Office Pod can soak up ambient noise, helping to keep conversations private inside and preventing distractions coming in from the outside. With well over 40 different fabric colours available, they can be completely customised so you can add your own personal touches.
The Esteem Acoustic Office Pod is available in a variety of different sizes and each incorporates enough space for seating areas and more. There is the added option of including printed glazed panels with your Esteem Acoustic Office Pod which is a great place to add a brand logo or detailed graphic. Each panel is split into two, therefore providing the option to pick two colours out from a selection of over 12 fabric colours.
When it comes to setting up, the panels of the Esteem Acoustic Office Pod are all relatively lightweight, thereby ensuring that it is easy to setup and start using. Each panel incorporates acoustic foam which has been rigorously tested at The Sound & Research Laboratory to ensure the Esteem Acoustic Office Pod is excellent at operating as a private working or break area.
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 232000.
Product specifications for Acoustic Office Pods
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Fabric
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
Can I choose more than 1 colour per screen?
Yes you can! We have designed the Concept 2 and 3 part for this reason, so you’re able to choose more than one fabric colour per screen.
Mix and match colours as you create a unique acoustic office screen layout.
Can I add print?
On the full acoustic Concept Partition Screens it’s not possible to add any print, but on the concept screen with the acrylic panel it’s possible.
Add custom print to the acrylic panel in the form of any image, logo, or text.
How long will my screens take?
As the Concept Acoustic Screens are made to order, we require 10 working days to manufacturer and dispatch. We will make the screen to your desired size and colour selections.
Do I need to purchase anything additional to use the Concept Screens?
No, everything you need to get started is included. You’ll receive a set of trip and wheelchair friendly stability feet and a flexible linking strip.
Are the Concept Office Screens portable?
As standard, the Concept screens are supplied with stability feet which aren't portable. Upgrades to castor wheels are available to transform the static partition into a portable solution.
