Inspire Acoustic Office Pod
Dispatched within 10 working days
- Designed and manufactured in the UK by Go Displays.
- Each side is upholstered using acoustic foam and your choice of 12 fabric colours.
- Features a strong aluminium frame finished with silver, black or white powder coated
- All screens included in the pod at 2.2m high.
- Glazed screens are available in either clear or frosted acrylic.
- Includes an internal 18mm solid core and 12mm fire retardant foam on both sides.
- Inspire Acoustic Office Pods are tested to NIC 21.
- Screen core is pressed together under immense pressure to make it extremely robust.

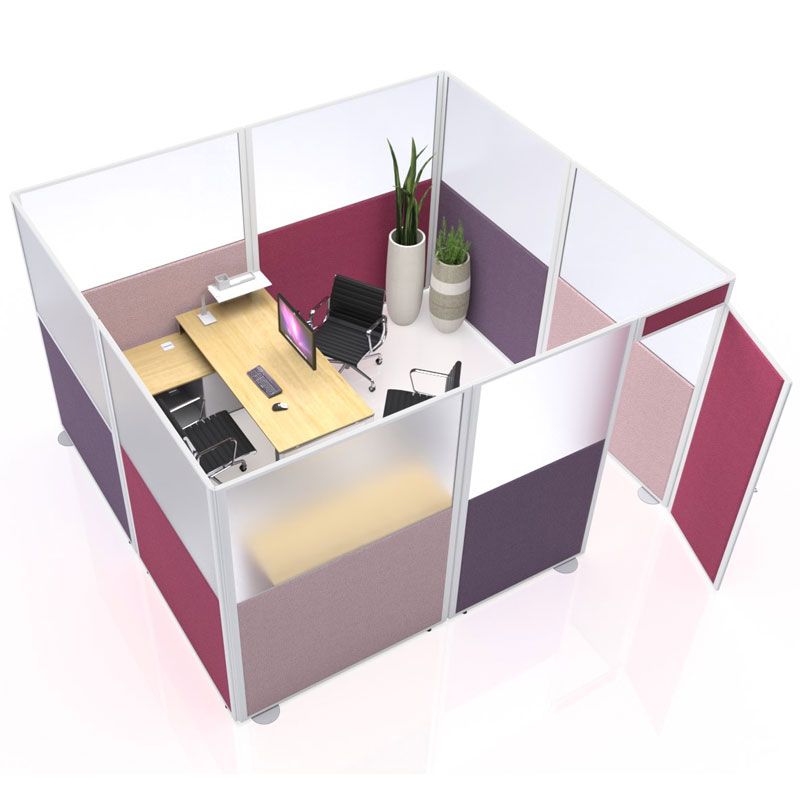

The Inspire Acoustic Office Pod allows you to create private spaces in open environments such as offices and seating areas. The panel design incorporates Perspex to allow light to continue to travel through, meanwhile the bottom of the panel includes acoustic foam, which is effective in keeping conversations private. There are a variety of different customisation options, so you can customise the Inspire Acoustic Office Pod to integrate with the space you have available.
The Inspire Acoustic Office Pod can be completely customised to adapt to your environment, this means a variety of different sizes, colour choices and even the added option of including printed graphics on the Perspex panels. With 12 different fabric colours to choose from, the Inspire Acoustic Office Pod can easily integrate with an existing environment.
Each panel of the Inspire Acoustic Office Pod includes acoustic foam, making it a great addition in noisy environments such as offices and seating areas. The foam itself is very effective at soaking up ambient noise such as conversations and phones ringing and it achieves this by absorbing the sound waves before they reach your ears.
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 232000.
Product specifications for Acoustic Office Pods
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Fabric
Woven Fabric
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric
Universe Collection has been tested to BS 5867-2: 2008 Type B
