Morton Vision Top Screens
Dispatched within 10 working days
- Designed and manufactured in the UK by Go Displays.
- If graphic design has been selected, please allow 4 additional working days
- Each side is upholstered using acoustic foam and your choice of 25 fabric colours.
- Features a strong aluminium frame with white, silver or black powder coated paintwork.
- Panel also includes an internal solid core and fire retardant foam on both sides.
- Custom print available on the acrylic section of the screen
- The glazed vision screens are finished in high quality acrylic.
- Perspex vision screen is 480mm down from the top of the screen.
- Quick and simple to assemble and easy to use.
- Bespoke screen sizes are available.
- Still not convinced? Come along to our showroom in Peterborough to see for yourself!

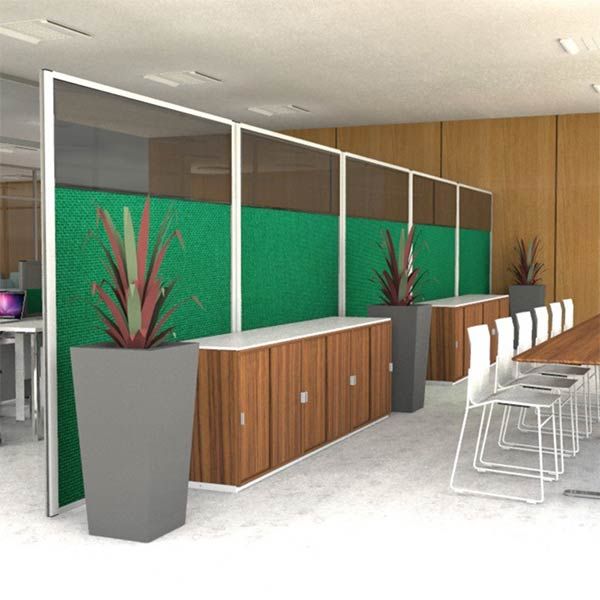

The Morton Vision Top Screens are designed to add style and substance to your working environment. Each screen incorporates acoustic foam to help soak up ambient noise as well as including a clear section at the top of the panel to allow natural light to continue to flow through. Both of these are fantastic at creating pleasant working environments which are designed to help people to concentrate.
The Morton Vision Top Screens provide a great way of enhancing working environments by reducing the number of distractions as well as maintaining the benefits of having open space. Including acoustic foam as well as the Perspex screens makes the Morton Vision Top Screens effective in offices or classrooms where you can make the most of their potential to help create environments that boost concentration levels.
There are 25 fabric colours to choose from and you can even include a graphic to the top of the vision screen, allowing you to completely customise the Morton Vision Top Screens. The panels easily connect together using linking strips, allowing you to create stylish partition screens in any space.
PLEASE NOTE: These colour samples are for guidance and representation only. Due to limitations with colour screen viewing, accuracy cannot be guaranteed. Fabric samples are available on request. Please call our customer service team on 01733 232000.
Product specifications for the Morton Vision Office Screen range.
Frame Measurements
Frame thickness - 28mm
Frame width - (side bars) - 50mm / (Top & bottom bar) - 22mm
Acoustic screen thickness (Core, foam & fabric) - 42mm
Foot slots in the frame are 290.5mm in from each end (Varied on screens 800mm W & smaller)
Materials
Frame - Powder coated aluminium
Stability feet - Steel
*stability feet are trip and wheelchair friendly
Feet raise the screen by 25mm and protrude 230mm from either side of the screen
Acrylic - 3mm clear and frosted acrylic
White gloss laminate - HPL (high pressure laminate)
Internal - 18mm solid core
Foam - 12mm fire retardant acoustic foam
Linking strips - Flexible PVC
Fire Safety Elements
Foam
12mm Combustion Modified Foam BS 5852-2: using ignition Source 5 Crib
Chipboard
Surface spread of Flames Class 2 tested to BS479-7
MDF
Surface spread of Flames Class 2 tested to BS479-7
Plastic Components
Manufactured using non-flammable, self-extinguishing plastic.
Aluminium
Extrusions has a melting of 660°C and is not considered to be a fire hazard.
Steel
Components are not considered to be a fire hazard.
Acrylic
Tested to BS 476 Part 7 with a Class 3 classification
Laminate
Tested to standard UNE EN 13501-1:07+A1:2010
Fabric
Woven Fabric - Morton Standard
Woven Collection has been tested to BS 5867-2: 2008 & BS 7176 2007
Universe Fabric - Morton+
Universe Collection has been tested to BS 5867-2: 2008 Type B
Are the Morton Visions still acoustic?
The Morton Vision version with the acoustic base, has some level of acoustic property. But due to addition of acrylic, the partition isn’t as acoustically effective as the Morton Acoustic Office Screen.
The Morton Vision with the laminate bases offer no acoustic properties due to the hard material of the acrylic and laminate.
Can I add a logo to the acrylic section?
Yes, on the full, half and top vision it’s possible to add a logo, or custom print of choice on to the acrylic section of the divider.
Can I use different Morton Screens together?
It’s possible to link and use any of the Morton Vision and Standard Acoustic Screens together. All screens are supplied with a flexible linking strip so your configuration can be created from arrival.
Is it possible to return screening?
As we make each screen to order based on the selected size, fabric and frame colour, we’re unable to accept returns. View our full terms and conditions.
